LC3 Rabbit Polyclonal Antibody

SKU: orb500748

Featured

Description

Images & Validation

−

Item 1 of 2

Tested Applications	WB
Dilution range	WB=1:500-2000
Reactivity	Mouse
Predicted Reactivity	Bovine, Equine, Human, Porcine, Rat

Related Conjugates & Formulations

−

Biotin

HRP

IRDye800

Key Properties

−

Antibody Type	Primary Antibody
Host	Rabbit
Clonality	Polyclonal
Isotype	IgG
Immunogen	KLH conjugated synthetic peptide derived from human LC3 (31-121/121aa)
Target	MAP1LC3A
Molecular Weight	14/16 kDa
Purification	Affinity purified by Protein A
Conjugation	Unconjugated

Storage & Handling

−

Storage	Maintain refrigerated at 2-8°C for up to 2 weeks. For long term storage store at -20°C in small aliquots to prevent freeze-thaw cycles.
Form/Appearance	Liquid
Buffer/Preservatives	0.01M TBS (pH7.4) with 1% rAlbumin, 0.02% Proclin300 and 50% Glycerol.
Concentration	1mg/ml
Disclaimer	For research use only

Alternative Names

−

Autophagy related protein LC3 A; Autophagy related protein LC3 B; Autophagy related ubiquitin like modifier LC3 A; Autophagy related ubiquitin like modifier LC3 B; MAP1 light chain 3 like protein 1; MAP1 light chain 3 like protein 2; MAP1A/1B light chain 3 A; MAP1A/1B light chain 3 B; MAP1A/1BLC3; MAP1A/MAP1B LC3 A; MAP1A/MAP1B LC3 B; MAP1ALC3; MAP1BLC3; MAP1LC3A; MAP1LC3B; Microtubule associated protein 1 light chain 3 alpha; Microtubule associated protein 1 light chain 3 beta; Microtubule associated proteins 1A/1B light chain 3; Microtubule associated proteins 1A/1B light chain 3A; Microtubule associated proteins 1A/1B light chain 3B; MLP3A_HUMAN.

Similar Products

−

Item 1 of 4

LC3B Rabbit Polyclonal Antibody [orb6295]

Applications:	IF, IHC-Fr, IHC-P
Predicted Reactivity:	Bovine, Canine, Equine, Gallus, Human, Porcine, Zebrafish
Reactivity:	Mouse, Rabbit, Rat
Species/Host:	Rabbit
Clonality:	Polyclonal
Conjugation:	Unconjugated

Sizes Available: 100 μl, 200 μl, 50 μl

Item 1 of 3
MAP1LC3A Rabbit Polyclonal Antibody [orb10971]
Applications:
FC, IF, IHC-Fr, IHC-P
Predicted Reactivity:
Bovine, Gallus, Porcine, Rat
Reactivity:
Human, Mouse
Species/Host:
Rabbit
Clonality:
Polyclonal
Conjugation:
Unconjugated
Sizes Available: 200 μl, 100 μl, 50 μl
Item 1 of 2
LC3B Rabbit Polyclonal Antibody [orb157782]
Applications:
WB
Predicted Reactivity:
Bovine, Gallus, Zebrafish
Reactivity:
Human, Mouse, Rat
Species/Host:
Rabbit
Clonality:
Polyclonal
Conjugation:
Unconjugated
Sizes Available: 50 μl, 100 μl
Item 1 of 1
LC3 Rabbit Polyclonal Antibody [orb704246]
Applications:
WB
Predicted Reactivity:
Bovine, Equine, Human, Porcine, Rat
Reactivity:
Mouse
Species/Host:
Rabbit
Clonality:
Polyclonal
Conjugation:
Unconjugated
Sizes Available: 100 μl, 50 μl, 200 μl
Item 1 of 2
LC3B Rabbit pAb [orb763705]
Applications:
IHC, WB
Reactivity:
Human, Mouse, Rat
Clonality:
Polyclonal
Conjugation:
Unconjugated
Sizes Available: 50 μl, 100 μl

Quality Guarantee

Explore bioreagents carefree to elevate your research. All our products are rigorously tested for performance. If a product does not perform as described on its datasheet, our scientific support team will provide expert troubleshooting, a prompt replacement, or a refund. For full details, please see our Terms & Conditions and Buying Guide. Contact us at [email protected].

Protein: mouse brain lysates at 40 ug, Primary: rabbit Anti-LC3 (orb500748) at 1:300, Secondary: HRP conjugated Goat-Anti-rabbit IgG (orb572747) at 1:5000, Predicted band size: 14 kD Observed band size: 14, 16 kD.

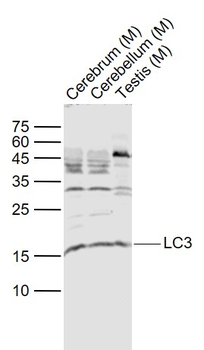

Sample: Lane 1: Cerebrum (Mouse) Lysate at 40 ug, Lane 2: Cerebellum (Mouse) Lysate at 40 ug, Lane 3: Testis (Mouse) Lysate at 40 ug, Primary: Anti-LC3 (orb500748) at 1/1000 dilution, Secondary: IRDye800CW Goat Anti-Rabbit IgG at 1/20000 dilution, Predicted band size: 17/14 kD, Observed band size: 17 kD.
