Anti-PD-1 [RMP1-14]

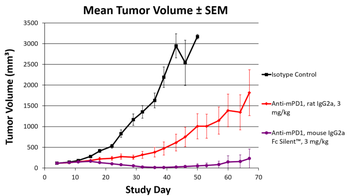

Comparison of original rat vs engineered mouse RMP1-14 antibody. Mean tumor sizes in animals treated with PD-1 mouse IgG2a Fc Silent™ antibody based on clone RMP1-14 are significantly smaller than in animals treated with the traditional rat IgG2a antibody (orb613941).

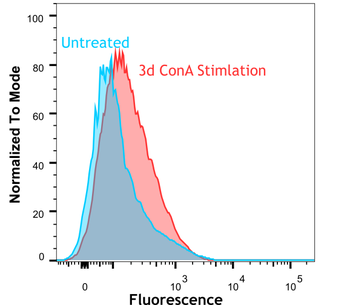

Flow-cytometry using anti-PD-1 antibody RMP1-14 Staining of murine splenocytes (unstimulated and 3-day Con A stimulated) with the rabbit-chimeric version of RMP1-14 (orb613940) at a concentration of 1 µg/ml for 30 mins at RT. After washing, bound antibody was detected using a AF488 conjugated donkey anti-rabbit antibody. Con A stimulation induces PD-1 expression as evident by the increased fluorescence signal.

Immunofluorescence staining of fixed mouse splenocytes with anti-PD-1 (programmed cell death protein 1) antibody RMP1-14. Immunofluorescence analysis of paraformaldehyde fixed mouse (Mus musculus) splenocytes on Shi-fix™ coverslips, permeabilized with 0.15% Triton stained with the chimeric rabbit version of RMP1-14 (orb613940) at 10 µg/ml for 1h followed by Alexa Fluor® 488 secondary antibody (1 µg/ml), showing membrane staining of a subset of cells. The nuclear stain is DAPI (blue). Panels show from left-right, top-bottom orb613940, DAPI, merged channels and an isotype control. The isotype control was stained with an anti-Fluorescein antibody followed by Alexa Fluor® 488 secondary antibody.

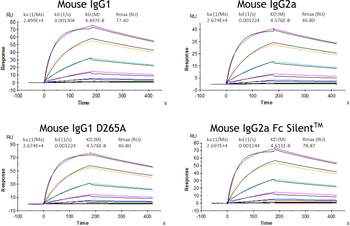

SPR-analysis of different versions of RMP1-14 binding to murine PD-1 Biacore data comparing affinity and binding kinetics of mouse IgG1, IgG1 D265A, IgG2a and IgG2a Fc Silent versions of RPM1-14 to mPD-1.
