PD-L2 Antibody

Immunofluorescent staining of human Jurkat cells with PD-L2 antibody (green, clone PDL2/2676) and Reddot nuclear stain (red).

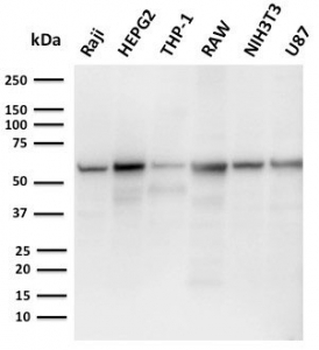

Western blot testing of 1) human Raji, 2) human HepG2, 3) human ThP-1, 4) mouse RAW264.7, 5) mouse NIH-3T3 and 6) human U-87 MG cell lysate with PD-L2 antibody (clone PDL2/2676). Expected molecular weight: 31-60 kDa depending on glycosylation level.

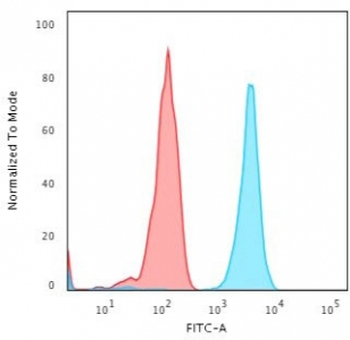

Flow cytometry testing of human Jurkat cells with PD-L2 antibody (clone PDL2/2676); Red=isotype control, Blue= PD-L2 antibody.

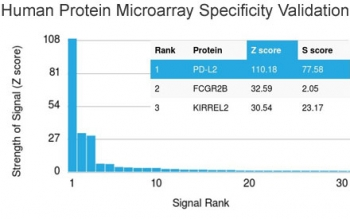

Analysis of HuProt (TM) microarray containing more than 19000 full-length human proteins using PD-L2 antibody (clone PDL2/2676). These results demonstrate the foremost specificity of the PDL2/2676 mAb. Z- and S- score: The Z-score represents the strength of a signal that an antibody (in combination with a fluorescently-tagged anti-IgG secondary Ab) produces when binding to a particular protein on the HuProt (TM) array. Z-scores are described in units of standard deviations (SD's) above the mean value of all signals generated on that array. If the targets on the HuProt (TM) are arranged in descending order of the Z-score, the S-score is the difference (also in units of SD's) between the Z-scores. The S-score therefore represents the relative target specificity of an Ab to its intended target.

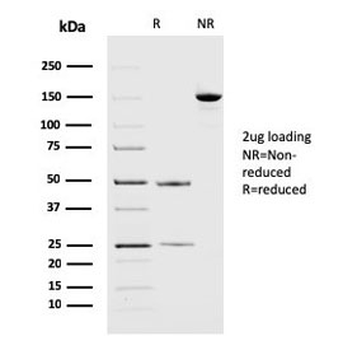

SDS-PAGE analysis of purified, BSA-free PD-L2 antibody (clone PDL2/2676) as confirmation of integrity and purity.
